Woodlook fence systems Full Frame

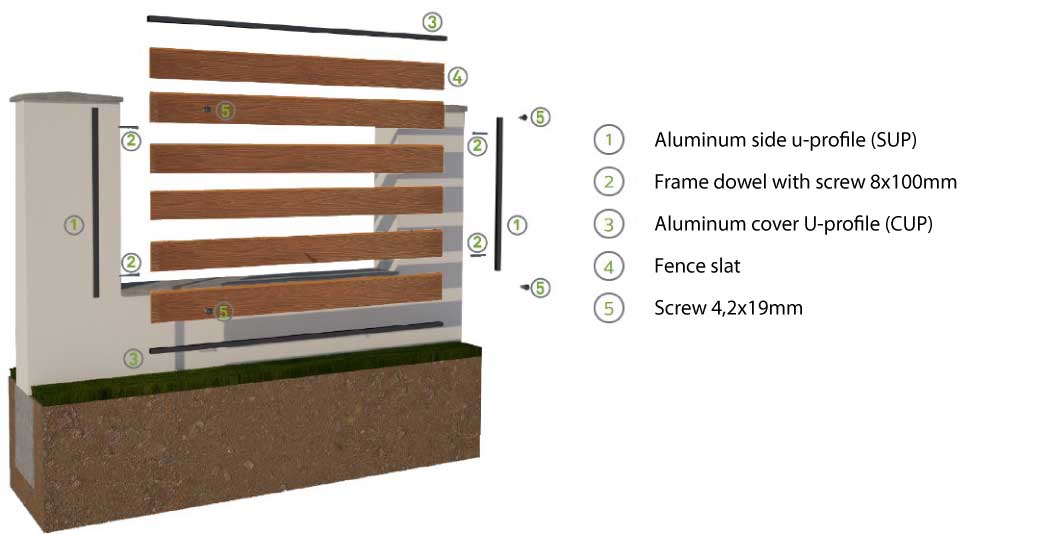

Woodlook Full Frame assembly procedure

Step 1. Pre-drilling the holes in the side U-profiles and supporting part. Fastening the side U-profiles using a frame dowels with a screws

Step 2. Attaching the bottom cover U-profile

Step 3. After inserting the first fence board, pre-drill a hole through both U-profile and the fence board itself. Then screw it in with the supplied screws.

Step 4. Inserting the necessary pieces of fence slats.

Step 5. After inserting the last fence slats, insert the upper covering U-profile.

Step 6. Pre-drill a hole through both U-profiles and the fence slat itself. Then screw it in with the supplied screws.

The final look of the Woodlook Full Frame fence system.

Necessary tools: hammer drill, spirit level, pencil, hammer, drill bit for metal Ø3 mm and Ø6 mm, concrete drill bit Ø8 mm, screwdriver, bit PH2 and PZ3, adhesive tape 3M.

Notes: The maximum width of the fence field for the given system without additional reinforcing structure is 1.8m. In case of increased clearance between the Woodlook fence profile and the side U-profile (SUP), we recommend sticking 3M adhesive tape on the inner sides of the U-profile (SUP). The supplier is not responsible for the system if any changes are made to the installation instruction by the customer. It is possible to use a permanent marker of the appropriate color for the repair in case of damage (scratching) to the paint on the screw or U-profile.
